Integrated LNG & L-CNG Infrastructure Solutions
Turnkey cryogenic fueling systems powered by Endurance technology. From vacuum-insulated storage to high-flow dispensing, we deliver 99.9% reliability for heavy-duty transportation and industrial energy.
Overview
Shubh Tradex delivers complete, turnkey LNG and L-CNG refueling infrastructure in strategic partnership with Endurance Energy. We bridge the gap between world class cryogenic engineering and local project execution, offering solutions that range from high vacuum storage tanks to high flow dispensing systems for heavy duty transportation and industrial gasification.
Our L-CNG solutions specifically cater to the growing demand for "Integrated Energy Hubs," where a single LNG source is used to provide both LNG for heavy trucks and high pressure CNG for passenger vehicles. Every system we deploy is optimized for low boil off rates, rapid refueling, and 24/7 reliability in the demanding Indian environment.
Key Technical Differentiators
- Vacuum Insulated Excellence: Utilizing Endurance's high vacuum, multi layer spiral winding insulation to ensure a static evaporation rate of ≤ 0.15% per day.
- Dual Fuel Capability: Seamlessly convert LNG to high pressure CNG (L-CNG) through high pressure cryogenic pump skids and modular ambient vaporizers.
- High Flow Refueling: Advanced dispensing technology capable of delivering 180 - 200 L/min, significantly reducing filling times for heavy duty fleet operators.
- Rapid Deployment Skids: Containerized and skid mounted designs that minimize onsite civil work and allow for "Plug & Play" commissioning.
- ZBO (Zero Boil-Off) Technology: Integrated pressure management systems designed to prevent gas wastage during low traffic periods.
Target Applications
- Heavy Duty Logistic Corridors: Establishing LNG "Green Highways" with high capacity storage and high flow dispensers for long haul trucking.

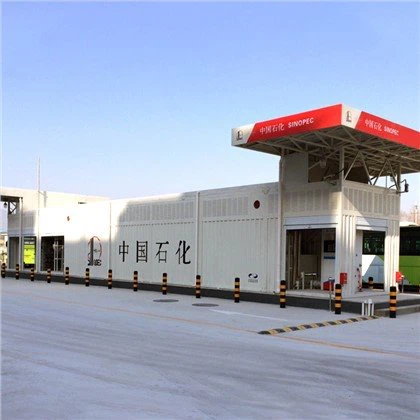

- Integrated CGD Hubs: Serving as Mother Stations that provide both LNG and high pressure CNG to local distribution networks.

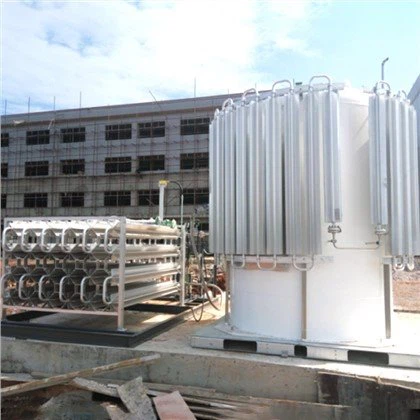

- Industrial Gasification (IGS): Skid mounted gasification stations providing a reliable natural gas supply to factories and industrial clusters not yet reached by pipelines.
- Private Fleet Depots: Dedicated containerized refueling units for corporate mining or construction fleets.
Technical Performance Overview
Our cryogenic systems are engineered to handle the thermal challenges of the Indian climate, utilizing high vacuum multi layer insulation to minimize boil off and maximize fuel integrity.

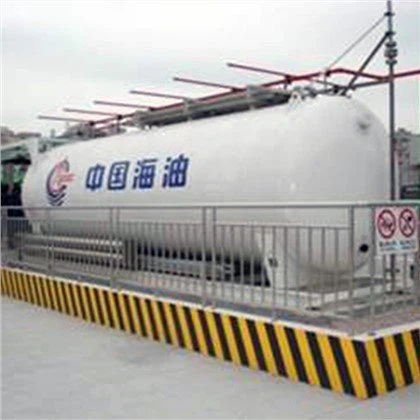

Storage & Cryogenics
| Property | Endurance Series Specification |
|---|---|
| Storage Capacity | 30 m³ to 150 m³ (Vertical or Horizontal configurations) |
| Insulation Type | High vacuum multi layer spiral winding |
| Static Evaporation Rate | ≤ 0.15% per day (ZBO – Zero Boil Off capability) |
| Design Pressure | 0.8 MPa to 1.6 MPa (Optimized for saturation management) |
| Material Build | S30408 Stainless Steel (Inner)/ Q345R Carbon Steel (Outer) |
Refueling & Gasification
| Property | L-CNG & LNG System Capability |
|---|---|
| LNG Dispensing Flow | 180 – 200 L/min (High-flow for heavy duty trucks) |
| L-CNG Discharge | 200 – 250 bar (High-pressure CNG from LNG source) |
| Metering Accuracy | ±1.0% (Mass flow measurement for LNG) |
| Vaporizer Capacity | 100 – 8000 Nm³/hr (Modular ambient air vaporizers) |
| Submerged Pump Flow | 50 – 400 L/min (Cryogenic submerged pump skid) |
Electrical & Safety Compliance
| Property | Standard / Specification |
|---|---|
| Electrical Safety | IS/IEC 60079 (Explosive Atmospheres) |
| Instrumentation | Ex II 2G II AT4 Gb (PESO/CCOE Certified) |
| Pressure Vessel Code | ASME Section VIII Div 1 / GB150 |
| Control Logic | Siemens PLC with integrated ESD (Emergency Shut Down) |
| Remote Access | IoT enabled SCADA for real time tank level and pressure alerts |
Key Engineering Advantages
Vacuum Jacketed Piping
All liquid lines utilize vacuum jacketed technology to prevent heat ingress and icing during high volume refueling.

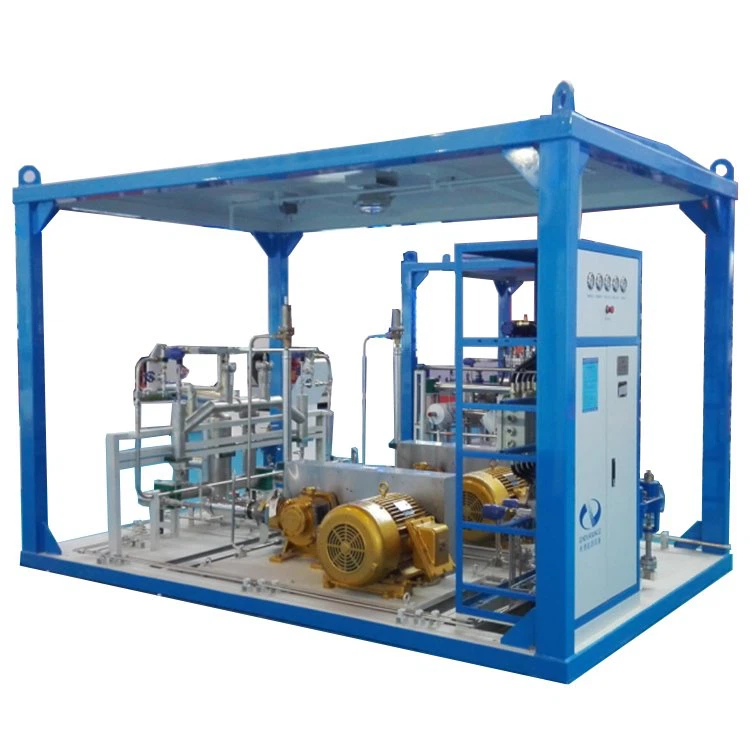

Modular Skid Design
Integrated pump skids and gasification units are factory tested and skid mounted to reduce onsite civil work by up to 60%.
Intelligent Pressure Management
Systems are equipped with automatic pressure building and vent recovery circuits to maintain optimal tank saturation.
PESO & IEC Certified
All cryogenic and electrical components meet the latest Indian statutory requirements for hazardous area operations.
LNG & L-CNG Infrastructure Solutions
- Conversion Efficiency:High pressure cryogenic pumps and modular ambient vaporizers convert LNG to 250 bar CNG.
- Footprint:Compact, skid mounted design reduces onsite civil work and allows for rapid deployment.
- Capacity:Customizable flow rates to match high traffic "Integrated Energy Hub" requirements.
- Insulation Tech:High vacuum multi layer spiral winding ensures a static evaporation rate of ≤ 0.15% per day.
- Durability:Built with S30408 stainless steel inner vessels for extreme cryogenic stability.
- Pressure Management:Integrated Zero Boil Off (ZBO) technology prevents fuel wastage during low traffic periods.
- Integration:Combines storage, pump skids, and control systems in a single, secure containerized unit.
- Automation:PLC based logic with integrated Emergency Shut Down (ESD) and IoT remote monitoring.
- Mobility:Ideal for temporary sites, private logistics depots, or mining operations.
- Refueling Speed:Delivers flow rates of 180 - 200 L/min to minimize downtime for fleet operators.
- Precision:High accuracy mass flow meters provide measurement within ± 1.0%.
- Build Quality:Vacuum jacketed nozzles and dual hose configurations prevent icing and ensure operator safety.
- Modular Vaporizers:Ambient air vaporizers with capacities ranging from 100 to 8000 Nm3/hr.
- Pressure Regulation:Precision skid mounted regulation ensures a stable gas supply for industrial burners and kilns.
- Safety:Fully compliant with ASME and IS/IEC 60079 hazardous area standards.
Ready to Discuss Your LNG/L-CNG Infrastructure Project?
Whether you are developing a 'Green Highway' corridor for long haul trucking or establishing an integrated L-CNG hub for urban distribution, our engineering team is ready to provide the technical expertise needed for success. We offer end-to-end liaison services, ensuring you receive the optimal configuration of Endurance Energy cryogenic equipment for your specific storage and flow requirements
